PriceList for Valve For Petrochemical - API6D trunnion Mounted Reducing Ball valve – Deye Detail:

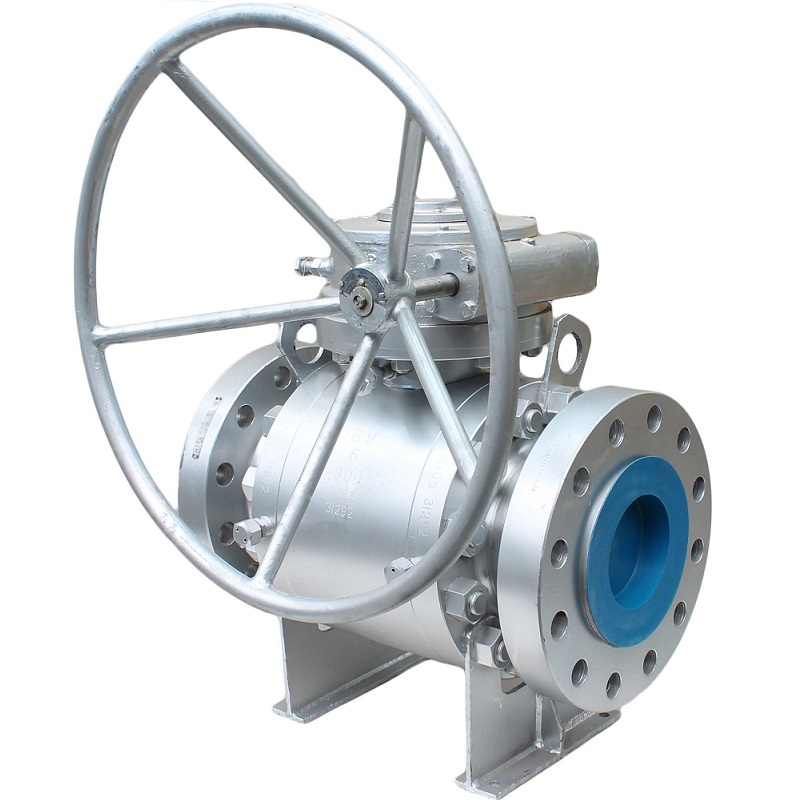

Carbon Steel A216WCB Trunnion Mounted Ball valve with reducing bore, API6D/API600
Size Range 4″-36″
Working Pressure: 150LBS-1500LBS
Design Details:
♦STEEL BALL VALVES API 609/API 6D
♦ANTI STATIC, API 608
♦STEEL VALVES, ASME B16.34
♦FACE TO FACE, ASME B16.10
♥END FLANGES, ASME B 16.5
BUTTWELDING ENDS, ASME B 16.25
♦INSPECTION AND TEST, API 598/API 6D
♦STEEL BALL VALVE ISO 14313
♦FIRE SAFE, API 607
Features
♦Reducing Bore or Full bore Design
♦Bolted Bonnet /Split Body
♦Trunnion Mounted Ball or Floating Ball type
♦BLOW-OUT proof Stem
♦ Fire Duable Constuction
♦Antistatic Device
♦ Stopper Device
♦ISO 5211 Mounting Pad
♦Flanged or Butt Welded Ends
♦Avaiable for install of Gearbox, penumatic actuator, elec. actuator

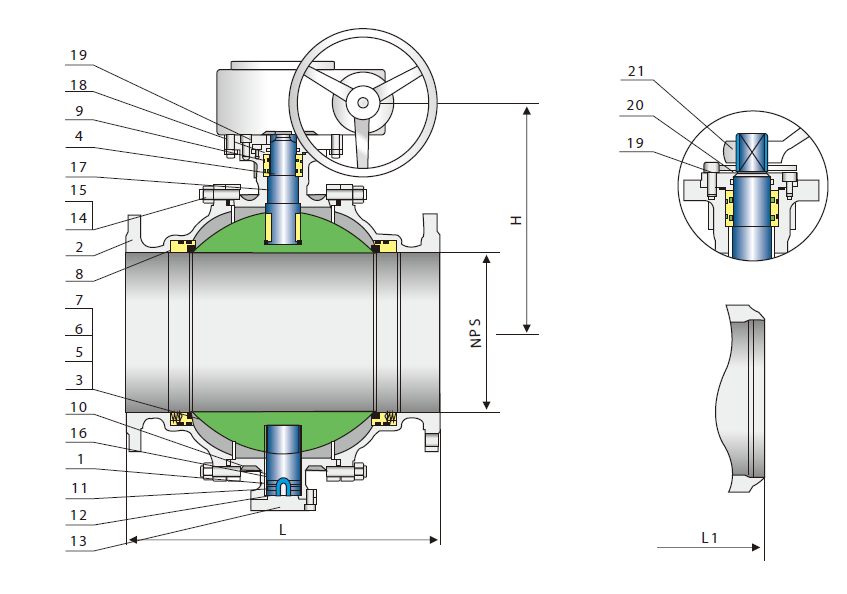

Main Part Material List
| No | Part Name | Carbon Steel | Stainless Steel 18Cr- 9Ni- 2Mo | Duplex SS | Carbon S teel |
| 1 | Body | A216- WCB | A351- CF8M | 4A/5A | A352- LCB |
| 2 | Bonnet | A216- WCB | A351- CF8M | 4A/5A | A352- LCB |
| 3 | Ball | A182- F304 | A182- F316 | SAF2205/2507 | A182- F304 |
| 4 | Stem | A276- 304 | A276- 316 | SAF2205/2507 | A276- 304 |
| 5 | Seat | A105+ENP | A182- F316 | SAF2205/2507 | A350- LF2+ENP |
| 6 | Seat Insert | Glass Filled PTFE | |||
| 7 | Seat Spring | A313- 304 | Inconel X- 750 | Inconel X- 750 | A313- 304 |
| 8 | Seat O- Ring | NPR | Viton | PTFE | Viton |
| 9 | Stem O- Ring | NBR 2) | Viton 2) | PTFE | Viton 2) |
| 10 | Bonnet Gasket | Graphite+304 | Graphite+316 | PTFE+2205 | Graphite+304 |
| 11 | Bonnet O- Ring | NBR | Viton | PTFE | Viton |
| 12 | Antistatic Spring | A313- 304 | A313- 316 | SAF2205/2507 | A313- 304 |
| 13 | Lower Cover | A216- WCB | A182- F316 | SAF2205/2507 | A182- F304 |
| 14 | Bonnet Stud | A193- B7 | A193- B8 | A193- B8 | A320- L7 |
| 15 | Bonnet Stud Nut | A194- 2H | A194- 8 | A194- 8 | A194- 4 |
| 16 | Trunnion | A276- 304 | A276- 316 | A276- 316 | A276- 304 |
| 17 | Trunnion Bearing | 304+PTFE | 316+PTFE | 316+PTFE | 304+PTFE |
| 18 | Gland Flange | A216- WCB | A351- CF8M | A351- CF8M | A352- LCB |
| 19 | Gland Bolt | A193- B7 | A193- B8 | A193- B8 | A193- B7 |
| 20 | Stop Plate | Carbon Steel+Zn | Carbon Steel+Zn | Carbon Steel | |
| 21 | Handle | Carbon Steel | |||
| Note:1)A105+ENP optional | |||||
| 2)Spiral wound construction. | |||||
