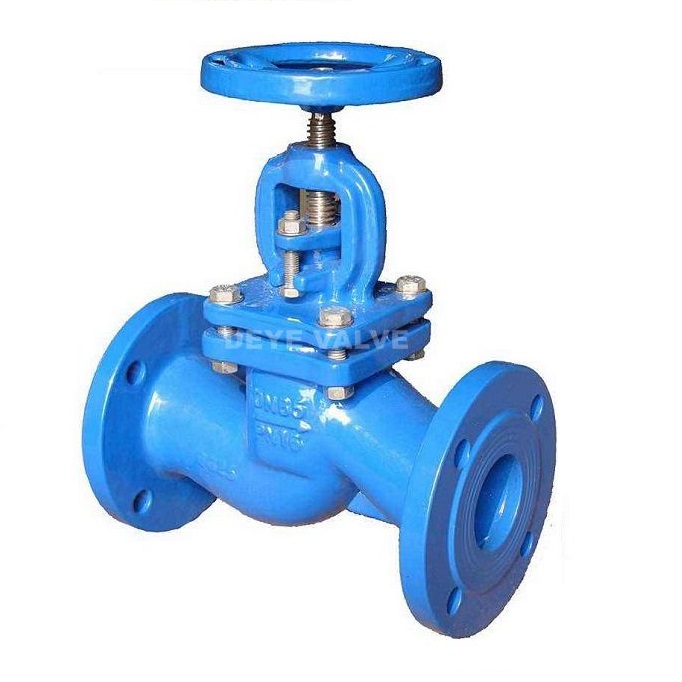

CI globe valve with brass seat ( G-J-01)
GG25 GGG50 PN16 /150LBS globe valve with brass seat, Temperature: -30℃-+300℃
Design standard: DIN3202 F1
Body material: cast iron
Seat/Plug: ductile iron +brass
Nominal diameter: DN65 2-1/2”
Pressure: PN16
End connection: flange RF
Face to face: EN558-1, DIN3202 F1
Working temperature: -30℃~+300℃.
Test and inspection: API 598.
Connection: Flange to EN1092-1
Epoxy Powder coated inside and outside Min. 250 Microns
Product Range:
Available material of the body: GGG40, GGG50, ASTM A536
Available seat seal: Stainless steel 304, SS316. Bronze. Brass, Gunmetal
Pressure Range: PN6, PN10 PN16 150LBS
Size Range: DN15-DN450
Optional Face to Face Design: ANSI BS customized
Optional color for Epoxy Coated: Red, blue, green, gray, black.
Performance:
• PN10/PN16/PN25 /150LBS Metal Seated Globe Valve is operating by the Brass seated iron wedge
. Moving perpendicular to the flow axis through a worm machined stem multi turned
• Tight sealing is achieved through Brass seated on wedge fully contacting
The body seated ring, Leakage Grade is up to Grade B as Min.
• In each time the valve is opened, the flow on the line cleans the sealing surface,
Prevents from dirt and deposits
• With its short installation length( DIN3202 F1), doesn’t occupy a big place
• It has ductile iron body and stainless steel stem
• Inner and outer surfaces are coated with minimum 250 microns fusion bonded epoxy
• Suitable to install actuator and gearbox
• Suitable to use with ground and underground applications. Can be operated with extension spindle
• Very low head loss rating. Can be operated with lower torque ratings, no maintenance needed
APPLICATIONS
Hot Water, Cold Water, Sewage Water, Fluids without acidity or alkalinity properties
Available material of the body: GGG40, GGG50, ASTM A536
Available seat seal: Stainless steel 304, SS316. Bronze. Brass, Gunmetal
Pressure Range: PN6, PN10 PN16 150LBS
Size Range: DN15-DN450
Optional Face to Face Design: ANSI BS customized
Optional color for Epoxy Coated: Red, blue, green, gray, black.
• PN10/PN16/PN25 Metal Seated Globe Valve is operating by the Brass seated iron wedge
. Moving perpendicular to the flow axis through a worm machined stem multi turned
• Tight sealing is achieved through Brass seated on wedge fully contacting
The body seated ring, Leakage Grade is up to Grade B as Min.
• In each time the valve is opened, the flow on the line cleans the sealing surface,
Prevents from dirt and deposits
• With its short installation length( DIN3202 F1), doesn’t occupy a big place
• It has ductile iron body and stainless steel stem
• Inner and outer surfaces are coated with minimum 250 microns fusion bonded epoxy
• Suitable to install actuator and gearbox
• Suitable to use with ground and underground applications. Can be operated with extension spindle
• Very low head loss rating. Can be operated with lower torque ratings, no maintenance needed
Hot Water, Cold Water, Sewage Water, Fluids without acidity or alkalinity properties
