Factory directly Elastic Check Valve – Cast Iron Gate Valve GV-H-10 – Deye

Factory directly Elastic Check Valve – Cast Iron Gate Valve GV-H-10 – Deye

Factory directly Elastic Check Valve – Cast Iron Gate Valve GV-H-10 – Deye Featured Image
  • Factory directly Elastic Check Valve – Cast Iron Gate Valve GV-H-10 – Deye
  • Factory directly Elastic Check Valve – Cast Iron Gate Valve GV-H-10 – Deye

Short Description:


Feature

Product Tags

Related Video

Feedback (2)

We usually continually offer you the most conscientious consumer services, along with the widest variety of designs and styles with finest materials. These initiatives include the availability of customized designs with speed and dispatch for Forged Steel Globe Valve , 1/2” 3/4” 1 Inch Gate Valve , DBB ball valve , We are able to do your tailored get to fulfill your own satisfactory! Our organization sets up several departments, including manufacturing department, sales department, high quality control department and sevice center, etc.

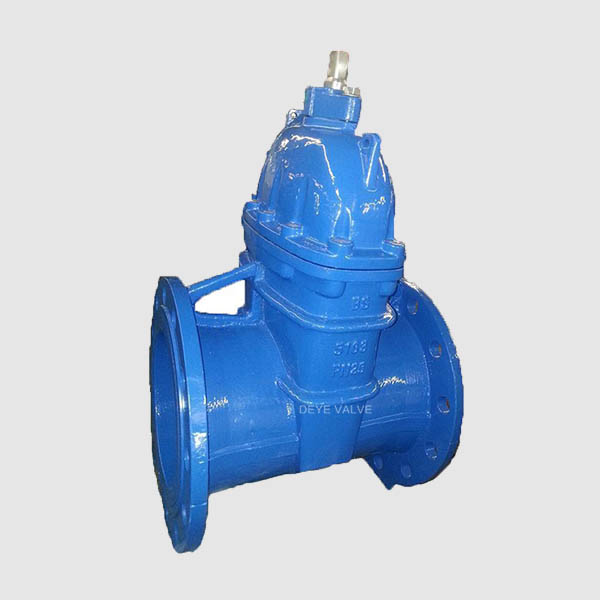

Factory directly Elastic Check Valve – Cast Iron Gate Valve GV-H-10 – Deye Detail:

Quick Detail
Design standard: DIN/BS/ANSI EN558 /SABS
Body material: Cast iron, ductile iron
Wedge: Ductile iron+ Brass/Bronze/Stainless steel
Nominal diameter: 2″, 3″, 4″6″ 8″
Pressure: PN25
End connection: RF. Flange
Face to face: DIN EN1711, BS5163 ANSI
Working temperature: -30℃~+300℃.
Test and inspection: API 598.
Gland Gate valve
Product Range Size: 2″-1200″
Connection: Flange ends conform to EN1092-1

Features
•PN10/PN16/PN25 Metal Seated Gate Valve is operating by the brass/bronze/stainless steel welded on iron wedge
• Moving perpendicular to the flow axis through a worm machined stem multi turned
• Tight sealing is achieved on leakage grade A/B The fusion bonded epoxy coated flow surface
• In each time the valve is opened, the flow on the line cleans the sealing surface, Prevents from dirt and deposits
• With its standard installation length, easy to replace the old equipment.
• It has ductile iron body and stainless steel stem
• Inner and outer surfaces are coated with minimum 250 microns fusion bonded epoxy
• Suitable to install actuator and gearbox
• Suitable to use with ground and underground applications. Can be operated with extension spindle
• Very low head loss rating. Can be operated with lower torque ratings, no maintenance needed

Product detail pictures:

Factory directly Elastic Check Valve – Cast Iron Gate Valve GV-H-10 – Deye detail pictures

Factory directly Elastic Check Valve – Cast Iron Gate Valve GV-H-10 – Deye detail pictures

Related Product Guide:
The consumer fulfillment is our primary goal. We uphold a consistent level of professionalism, top quality, credibility and service for Factory directly Elastic Check Valve – Cast Iron Gate Valve GV-H-10 – Deye , The product will supply to all over the world, such as: Germany , Armenia , Estonia , Our company will adhere to "Quality first, , perfection forever, people-oriented , technology innovation"business philosophy. Hard work to keep making progress, innovation in the industry, make every effort to first-class enterprise. We try our best to build the scientific management model, to learn abundant skilled knowledge, to develop advanced production equipment and production process , to create the first-call quality solutions, reasonable price , high quality of service , quick delivery , to offer you create new value .
