Competitive Price for Flanged Forged Valve - cast steel WCB 600LBS BW ball valve with 2pc body (BV-600-04W) – Deye Detail:

Quick Detail：cast steel 600LBS BW ball valve with 2pc body

Design standard: ASME B16.34/API600

Body material: Carbon Steel WCB.

Ball: SS316

Seat: PTFE/RPTFE

Nominal diameter: 4″.

Pressure: 600LBS

End connection: BW ANSI B 16.25

Face to face: ASME B16.10.

Length：Long type with customized design

Mode of operation: lever Operated

Test and inspection: API 598.



Product Range:

Optional Construction: 3pcs, 1pcs, 2pcs body.

Full Bore/ Reducing Bore

Floating Ball Design or Trunnion Mounted ball.

Optional Ends: BW, flanged RTJ RF FF, NPT, BSP.

Optional seal: PTFE, RPTEF, Nylon, Peek, Metal Seated

Available Body Material: ASTM A216WCB/LCB/CF8M/4A/5A/Alloy Steel

Available Ball : SS304, SS316, Solid Type, A105+ENP.

Pressure Range: 150LBS-1500LBS , PN10-PN250

Size Range: 2”-48” DN50-DN1200mm

Product detail pictures:

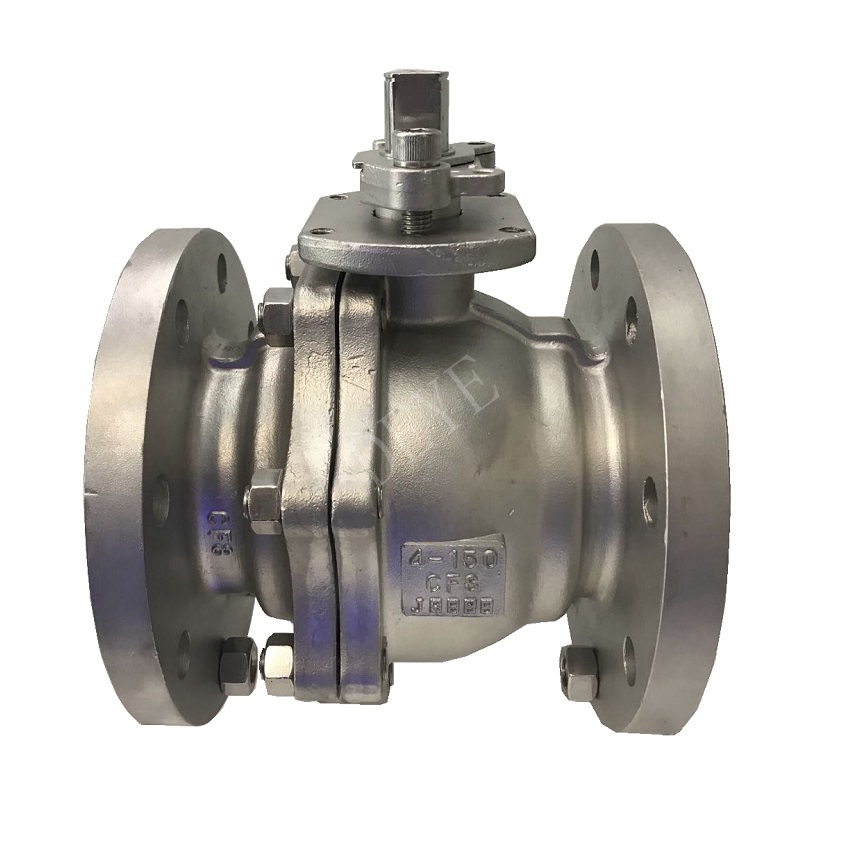

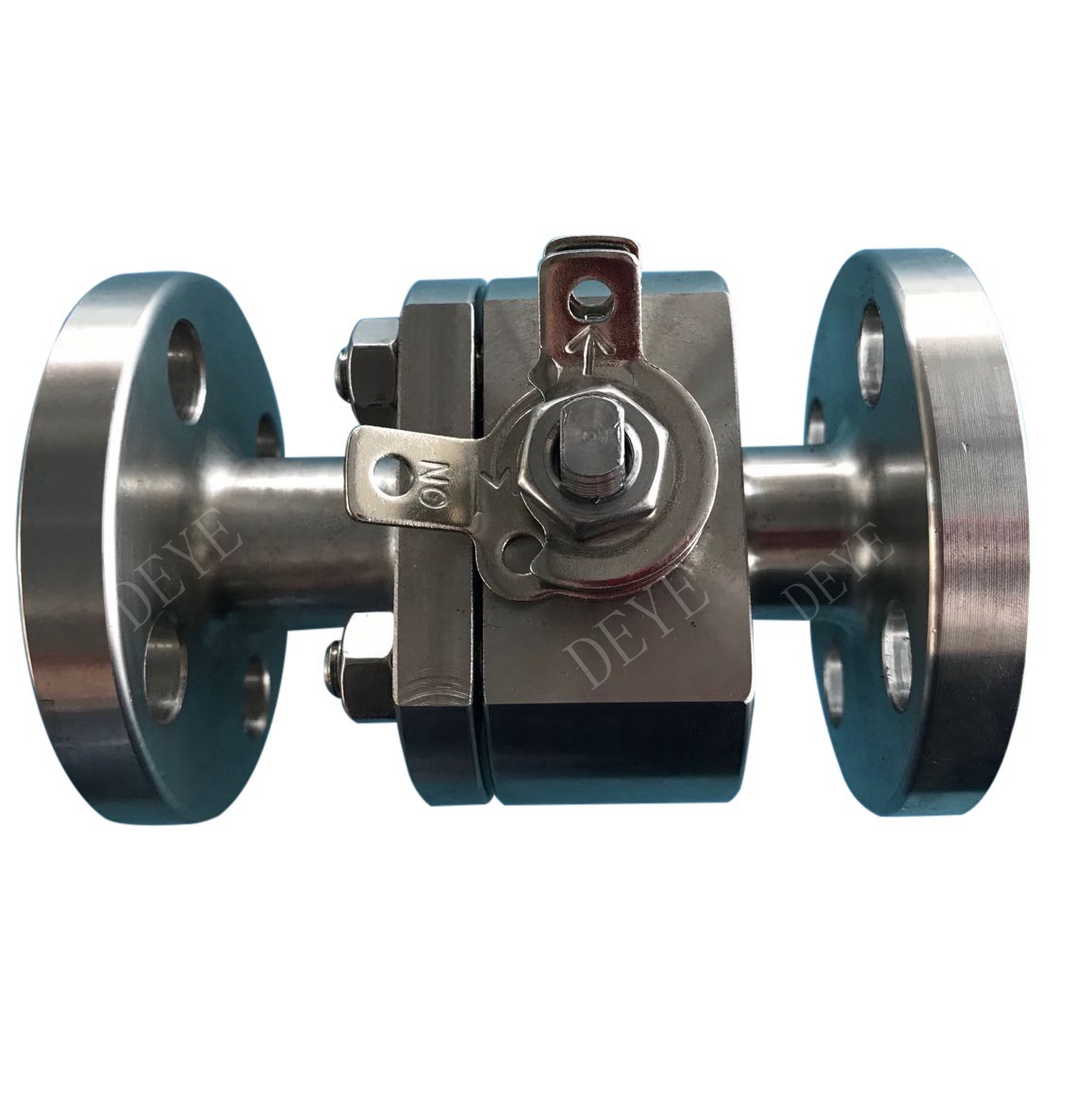

Competitive Price for Flanged Forged Valve - cast steel WCB 600LBS BW ball valve with 2pc body (BV-600-04W) – Deye detail pictures
